Introduction operate

Because purple just performs better

One brand and one automationplatform for all installations in all markets: the AutoStage2000. This allows to have one operator for all installations or to choose for more operators supported by the multi/user features in combination with the advantage having an integrated control system allowing useful functions like interlocks.

The automationplatform with SIL3, CE, UL and CSA certification, has three main layers: operate, control and servo. Since all nodes are networked we offer a real time online remote service.

The first layer OPERATE, can be devided in 3 sublayers: Composer, Piccolo and Remote, for large, middle and small installations. Look and feel for all units is identical.

The second layer, CONTROL, can be devided in 2 sublayers: PC and IPC server. The PC server enables multi user functionality and remote service. The IPC server or double IPC for SIL3 level is the real time safety control for all axis, desks and estops.

The third layer is the SERVO control. Each axis has one servo for electro motor or hydraulics. In this layer we also find the  on/off control or rigging box specially developped for chainhoists. Last but not least are the system cables with connectors allowing a rapid fitup and 100% factory acceptance test.

LARGE, MEDIUM AND SMALL

Look and feel the same operating: flywall, deckautomation & performer fly from one desk at small shows from more desks at large shows (multi user). Real time remote service for operate, central control & motor controls EU or US Type

Operate

Asterix

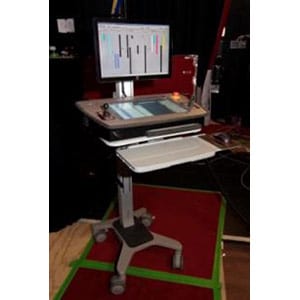

Composer

Composer tour

Playback wireless

Playback wireless

Piccolo

Piccolo wireless

Remote Chainhoist

Jogbox

Yellowbox/button control

Hempie

barcode

Dimension (mm)

1600x1050xvar

680x410x70

1200x800x1800

230x175x160

70x35x245

280x260x75

250x500x45

370x240x50

37x24x50

25 x 60 x 60

750x400x400

25x60x60

Own weight

80 kg

50 kg

50 kg

2.5 kg

400 g

3 kg

1.2 kg

3.2kg

0.3 kg

0.4 kg

30 kg

400 g

Connection

muliconnector

muliconnector

integrated

wireless

wireless

muliconnector

wireless

muliconnector

cat 5 + daisy chain

muliconnector

muliconnector

muliconnector

Axis

500

500

500

N/A

N/A

8

100

24

1-10

1-x

1

1

Speed control

3xJ 3F

2J or 2J 3f

5f

joystick 1or2

analog pushbutton 1/2

flippers joysticks

analog pushbutton

buttons

Button, pot. Meter

Flipper joysticks

Endless rope

Fixed speed

Functionality

cues/manual

cues/manual

cues/manual

playback

playback

cues/manual

cues/manual

manual

manual

manual

deads

Manual/identification

Screens (touch)

4

2

2

optional

optional

1

1

0

0

0

1

0
