Winch

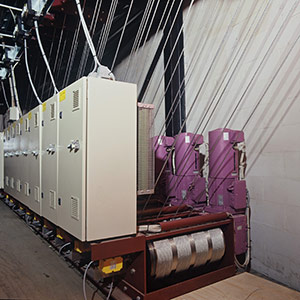

The multi and point hoist winches are used in different applicationssuch as flywalls, lifts, tracks, revolves and sliders..
The winches whether powerfly or counter weight assist are equipped with relevant safeties as required by the standards given and risk analyses we make together with our customers.
If the first pulley is too close to the drum then a zero fleet mechanism can be used.

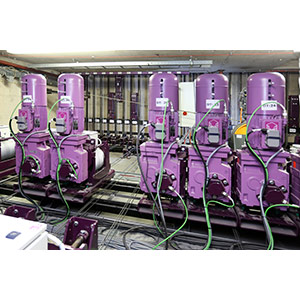

MULTIWIRE AND POINTHOIST
BGVC1 in combination with our SIL3 control
EU or US type (metric or imperial)
Lier
| Lieren | Dimension (mm/inch) | Own weight | SWL max | Speed max | Performance | ||
|---|---|---|---|---|---|---|---|

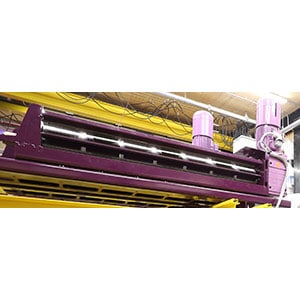

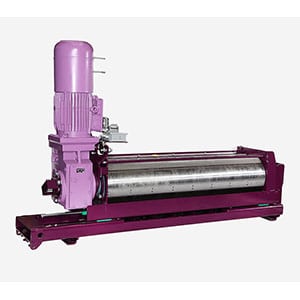

| Horizontal winch for flywalls |  | Powerfly | 400x2000x1400 | 450 kg | 650 kg | 2 m/s | 9 kW |
| With zero fleet compensation Also for vertical orientation |  | Powerfly | 400x1800x1420 | 600 kg | 650 kg | 1,8 m/s | 9 kW |
| With zero fleet compensation Also for vertical orientation |  | Powerfly | 535x1990x1600 | 850 kg | 1000 k | 1,8 m/s | 15 kW |

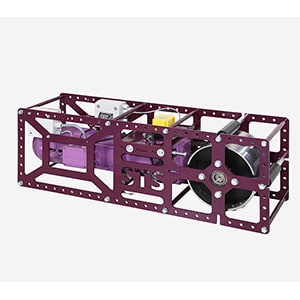

| Mecano Metric Roll-on roll-off |  | CWA/Powerfly | 1290/1390x400x400 1390x400x400 | 350/375 kg | 300/125 kg | 0,9; 1,2; 1,5 m/s | 3/5,5 kW |
| Mecano Imperial Roll-on roll-off |  | CWA/Powerfly | 50 ¾ ; 15 ¾ ; 15 ¾ 54 ¾ ; 15 ¾ ; 15 ¾ | 770/ 825 lbs | 520/210 lbs | 0,9; 1,2; 1,5 m/s | 2/5 HP |

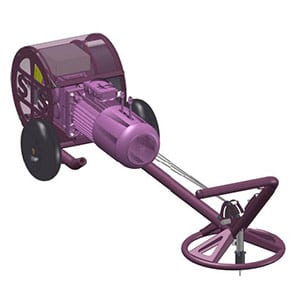

| roro Roll-on roll-off |  | CWA/Powerfly | 1615x446x240 | 350 kg | 125 kg PFly | 1,2 m/s | 5 kW |
| Pointhoist Ride to the position needed SIL3 group synchronization Local control in handle |  | Powerfly | 2600x750x650 | 290 kg | 250 kg | 2 m/s | 7,5 kW |
Preset lier
| Lineshaft | Dimension | Own weight drum | Own weight motor | SWL max | Speed max | Performance | Hoist length | Shaft max | Remark | |
|---|---|---|---|---|---|---|---|---|---|---|

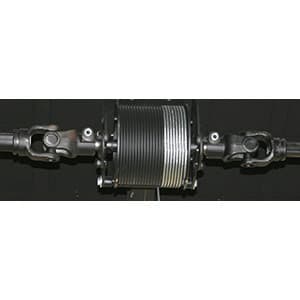

| Lamar |  | 65 kg | 150 kg | 650 kg | 1 m/s | 7,5 kW | 10/20 m | 6 | Advantage: no horizontal forces in the building | |
| Leide |  | 50 kg | 50 kg | 350/650 kg | 4 m/min | 0,55/0,75 kW | 10/20 m | 6 | Advantage: no horizontal forces in the building |
| Pilewind | Max pile diameter (mm) | Pile diameter (mm) | 4mm *** | 5mm *** | 6 mm *** | M1 0,25 KW 4 m/min vast (var) | M2 0,25 KW 4 m/min vast (var) | M3 0,37 KW 4 m/min vast ( var) | M3,5 0,75 4 m/min vast (var) | M4 1,1 KW 16 m/min variabel | M5 2,2 KW 16 m/min variabel | M6 2,2 KW 16 m/min variabel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 | 250 | 8 | 6 | 5 | 110 | 244 | 522 | (1074) | 278 | 456 | (1240) | |
| 300 | 300 | 13 | 10 | 8 | 81 | 178 | 382 | 786 | 204 | 333 | (907) | |
| 400 | 350 | 20 | 15 | 12 | 78 | 173 | 371 | 763 | 198 | 323 | (881) | |
| 400 | 400 | 27 | 21 | 18 | 68 | 151 | 324 | 666 | 173 | 283 | 769 |
